Lab2

Welcome to Lab2. The goal of this lab is to use the RPC key-value pair we built in Lab 1 to implement scalable Tribbler front-ends and back-ends. In particular, you need to first wrap the key-value pair server into a distributed key-value pair service called bin storage, where your implementation should fit trib.BinStorage interface, and then on top of this storage layer, you need to implement a stateless Tribbler front-end type that fits trib.Server interface.

Get Your Repo Up-to-date

First we need to update the trib repo:

$ cd ~/gopath/src/trib
$ git pull /classes/cse223b/sp14/labs/trib lab2

If you have not changed anything in trib repo, this should be painless. However, if you changed stuff, you need to merge the changes.

Also update the triblab repo to merge branch lab2. There will be several changes:

If you have not touched those files and have not created file called server_test.go or bins_test.go by yourself, the merge should be painless:

$ cd ~/gopath/src/triblab
$ git pull /classes/cse223b/sp14/labs/triblab lab2

If you have made changes to those files. Then you need to merge the changes properly.

If you have trouble on merging the changes (on any of the repos), and don't know how to solve the conflicts, please ask the TA for help.

System Architecture

The overall system architecture looks like this:

System Arch

As you can see from the figure, our system is split into two parts, where the upper part is the Tribbler service, and the lower part is a general purpose distributed key-value store called "Bin Storage". The Tribbler front-ends take AJAX calls from the users and translate the calls into bin storage calls, where the bin storage client will issue the calls into the "dumb" key-value back-ends via RPC. Each back-end here is a simple independent key-value store (which we just implemented in the previous lab). There is also a keeper instance running in the background that maintains the bin storage in a coherent state. Both the bin storage clients and the keeper use the same RPC interface to communicate with the back-ends. The interface semantics defined in trib.Storage should be sufficient to perform all the bin storage tasks.

Bin Storage

Bin Storage is a distributed key-value pair storage that combines a bunch of trib.Storage back-ends and presents a single and scalable storage service over the network. Bin storage service is provided via the trib.BinStorage interface.

On one hand, conceptually, bin storage combines an infinite set of separated trib.Storage instances called bins. Each bin has a different name, and a caller can fetch a bin via the BinStorage.Bin() function -- the only function in the trib.BinStorage interface. Initially, all bins are empty.

On the other hand, physically, a bin storage is built on top of a finite set of key-value storage back-ends (which we built in the last lab), where a bin (a virtual KV store) will be mapped to one of the key-value back-ends (physical KV stores). As a result, multiple bins might share a same back-end by splitting its key space with prefixes (or suffixes) that encode the bin names. As shown in the figure below, an example bin storage hashes 6 bins into 3 back-ends, storing each bin with different prefixes inside. When a caller calls Get("some-key") on the bin "alice" for example, the bin storage client will translate that call into a Get("alice::some-key") RPC call on back-end 0.

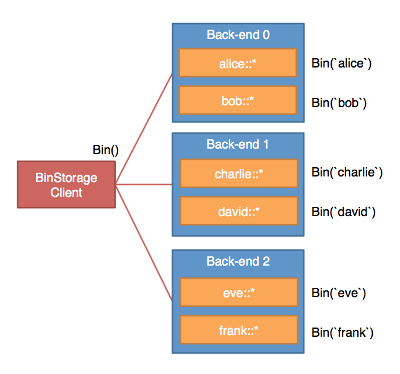

Bin Storage

In addition to key-value stores in bins, a bin storage also coarsely synchronizes the logical clock across all the bins, so that the clocks won't be offset too much over time. Since the back-ends are "dumb" and they do not talk to each other, this clock synchronization is done by a background keeper process. Note that the clocks are NOT real-time synchronized (which would be too expensive for a distributed system), but only coarsely synchronized. In particular it means that if a Clock() is issued at least 3 seconds after another Clock() call, no matter which bins they are issued in, bin storage always guarantees that the later one always returns a clock value no smaller than the earlier one's. Note that by definition, a bin storage with one single back-end will automatically satisfy this requirement, but when there are multiple back-ends, the keeper must do some maintenance from time to time.

As said, in Lab1, we already implemented the back-ends, the APIs for both the server and the client, so we will just reuse them without changes (assuming that you implemented them correctly). Both the bin storage client and the keeper will communicate with the "dumb" back-ends via the RPC calls we implemented, and cooperatively they present a coherent bin storage interface to upper layer applications.

Tribble

Before we look into how the Tribbler service works, let's first define what a tribble is.

A Tribble is a structure type that has 4 fields:

type Trib struct {
    User    string    // who posted this trib
    Message string    // the content of the trib
    Time    time.Time // the physical timestamp
    Clock   uint64    // the logical clock
}

Time is what the front-end claims when this tribble is created, by reading the front-end's own physical time on the machine when Post() in a trib.Server is called. However, to sort tribbles in a globally consistent and reasonable order, we cannot sort the tribbles only by this timestamp, because different front-ends always have different physical time readings. For sorting, Tribbler service needs to maintain a distributed logical Clock in uint64.

When sorting many tribbles into a single timeline, you should sort by the fields following this priority:

  1. Clock The logical timestamp.
  2. Time The physical timestamp.
  3. User The user id.
  4. Message The message content.

We call this the Tribble Order.

Tribbler Service Interface

The Tribbler service logic is defined by the trib.Server interface (in trib/trib.go file). This is how the Web user interface interacts with a Tribbler server.

SignUp(user string) error

Creates a new user. After a user is created, it will never disappear in the system.

A valid user name must be no longer than trib.MaxUsernameLen=15 characters but not empty, must start with a lower-case letter, and can only contain lower-case letters or numbers. There is a helper function called trib.IsValidUsername(string) which you can use to check if a username is valid.

Returns error when the username is invalid or the user already exists. Concurrent sign-ups might both succeed.

ListUsers() ([]string, error)

Lists at least trib.MinListUser=20 different registered users. When there are less than 20 users that have ever signed up, list all of them. The returned usernames should be sorted in alphabetical order.

This is just for showing some users on the front page; this is not for listing all the users that have ever signed up, because that would be too expensive in a scalable system.

Post(who, post string, clock uint64) error

Posts a tribble. clock is the maximum clock value this user client has ever seen so far by reading tribbles (via Home() and Tribs()). It returns error when the user does not exist or the post is too long (longer than trib.MaxTribLen=140).

Tribs(user string) ([]*Trib, error)

Lists the recent trib.MaxTribFetch=100 tribbles that a user posted. Tribbles needs to be sorted in the Tribble Order. Also, it should make sure that the order is the same order that the user posted the tribbles.

Follow(who, whom string) error
Unfollow(who, whom string) error
IsFollowing(who, whom string) (bool, error)
Following(who string) ([]string, error)

These are functions to follow/unfollow, check following and listing all following users of a user. A user can never follow or unfollow himself. When calling with who equals to whom, the functions return error. When the user does not exist, the functions return error. If a user performs Folllow() on another user over multiple client concurrently only one Follow() should succeed with no errors.

A user can follow at most trib.MaxFollowing=2000 users (not including himself). When a user tries to follow more than trib.MasFollowing=2000 users, Follow() should return error.

Home(user string) ([]*Trib, error)

List the recent trib.MaxTribFetch=100 tribbles that are posted on the user's following timeline in Tribble Order. In addition, the ordering should always satisfy that:

  1. If a tribble A is posted after a tribble B is posted, and they are posted by the same user, A always shows after B.
  2. If a tribble A is posted 10 seconds after a tribble B is posted, even if they are posted by different users, A always shows after B.
  3. If a tribble A is posted after a user client sees tribble B, A always shows after B.

A is posted after B means B calls Post() after A's Post() returned.

It returns error when the user does not exist.

In addition to normal errors, these calls might also return IO errors if the implementation needs to communicate to a remote part. Returning a nil error means that the call is successfully executed; returning a non-nil error means that the call might be successfully executed or not.

Note that trib/ref package contains a reference implementation for trib.Server (which use tried in the lab setup).

Entry Functions

Your job for Lab2 is two-folded.

  1. Implement the bin storage service by implementing the keeper (the ServeKeeper() function) and the bin storage client logic (the NewBinClient() function).
  2. Reimplement the Tribbler service by translating all the Tribbler service calls into bin storage service calls (the NewFront() function).

You can find these entry functions in lab2.go file under triblab repo:

func NewBinClient(backs []string) trib.BinStorage

This function is similar to NewClient() in lab1.go but instead returns a trib.BinStorage interface. trib.BinStorage has only one function called Bin(), which takes a bin name and returns a trib.Storage. A bin storage provides another layer of mapping, where the caller will first get a key-value storage (the bin) with a bin name, and then perform key-value function calls on the returned storage. Different bin names should logically return completely separated key-value storage spaces, but note that multiple bins might share a single physical storage underlying by appending the bin name as a prefix (or a suffix) in the keys.

For your convenience, we have a new small package called trib/colon which you can use for escaping all the colons in a string. The escaping rule is simple, all '|' runes are escaped into "||", and all ':' runes are escaped into "|:". Please use this package wisely.

func ServeKeeper(b *trib.KeeperConfig) error

This function is a blocking function, similar to ServeBack(). It will spawn a keeper instance that maintains the distributed back-ends in consistent states. For Lab2, there will be only one keeper and the keeper do not need to do much, but in Lab3, they will be responsible of handling all the back-end joining, leaving, crashing and related key migrations. In Lab2, there will be only one keeper, but in Lab3, there will be multiple keepers for fault-tolerent.

(Note: A blocking function here means that it never returns in normal states, and whenever it does return, it always returns an error. Some students implemented ServeBack() with go http.Serve(...) or return nil in Lab1; that was not correct. The right thing should be doing something like return http.Serve(...).)

The trib.KeeperConfig structure contains all the back-end serving addresses and also some peering information for the keepers which you would need in Lab3:

The keeper can do whatever it wants to do, but the keeper should do no more than maintaining the bin storage in a consistent state. It is okay for a keeper to understand how a bin storage client translates the keys, but should not need to parse anything further in the keys or values. This means that with NewBinClient(), ServeBack() (implemented in Lab1) and ServeKeeper() calls, they should together provide a general distributed key-value pair bin storage layer, where it could work for any kinds of service (including but not only Tribbler).

The keeper does not need to listen on the address given. The keeper address here serves more like a keeper configuration name; it tells the keeper launcher if a keeper should be running on the current machine.

func NewFront(s trib.BinStorage) trib.Server

This function takes a bin storage, and returns an implementation of trib.Server. The returned instance then will serve as a service front-end that takes Tribbler service function calls, and translates them into key-value pair bin storage calls. This front-end should be stateless, concurrency safe, and ready to be killed at any time. This means that at any time during its execution on any call, the back-end key-value pair storage always needs to stay in a consistent state. Also, note that one front-end might be taking multiple concurrent requests from the Web, and there might be multiple front-ends talking to the same back-end, so make sure it handles all the concurrency issues correctly.

Also, be aware that the trib.BinStorage parameter might be not one that you just implemented in the previous entry functions, but as long as it satisfies the bin storage interface specification, your Tribbler server should work just fine. This means that you cannot rely on the bin storage keeper to perform Tribbler related garbage cleaning. The front-ends might spawn back-ground routines that do the garbage cleaning by themselves.

Playing with It

First is to setup the bin storage. Since we might have multiple parts running at the same time probably on different machines, we will have a configuration file that specifies the serving addresses of the back-ends and the keeper for the distributed bin storage. The config file by default will use bins.rc as its file name, where bins stands for bin storage.

bins.rc is saved in json format, marshalling a RC structure type (defined in trib/rc.go file). We have a utility program called bins-mkrc that can generate a bins.rc file automatically.

Find a directory as your working directory (like triblab).

$ bins-mkrc -local -nback=3

This will generate a file called bins.rc under the current directory, and also print the file content to stdout. -local means that all addresses will be on localhost. -nback=3 means there will be in total 3 back-ends. If you remove -local, then it will generate back-ends starting from 172.22.14.211 to 172.22.14.220, which are the IP address of our lab machines. For bins-mkrc, there can be at most 10 backends and 10 keepers (since we only have 10 lab machines). However, you are free to create your own bins.rc file that has more back-ends and keepers. For this case, we use 3 back-ends and 1 keeper (the default value for -nkeep).

With this configuration file generated, we can now launch the back-ends:

$ bins-back

This will read and parse the bins.rc file, and spawn all the back-ends which serving address is on this host. Since all the back-ends we generate here are on localhost, so all the 3 back-ends are created for this case (in different go routines). You should see three log lines showing that three back-ends started, but listening on different ports. Besides that bins-back reads from the configuration file, it is not much different from the kv-serve program. You can also manually specify the back-ends you would like to start from the command line. For example, you can run the following to start only the first two back-ends:

$ bins-back 0 1

By the way, see how this program starts several independent servers at the same time in different go routines but in the same process, and now you should better understand why using the rpc.DefaultServer is not the right thing to do in Lab1.

After the back-ends are ready, we can now start the keeper.

$ bins-keeper

If should print a message log that shows that the bin storage is ready to serve.

To play with this distributed bin storage, we have another toy client program called bins-client:

$ bins-client
(working on bin "")
> bin a
(working on bin "a")
> get a

> set a b
true
> get a
b
> bin t
(working on bin "t")
> get a b

> bin a
(working on bin "a")
> get a b
b
...

This program reads the back-end addresses from bins.rc and can switch between different bins with bin command. The default bin is the bin with a name of an empty string.

Now with the bin storage working, we can finally launch our Tribbler front-end that uses this distributed storage:

$ trib-front -init -addr=:rand -lab

You have used this utility before. The only new thing here is the -lab flag, which tells it to read the bins.rc file and use our lab implementation. This will start a stateless front-end (which you implemented in this lab) that will connect to the back-ends service addresses specified in bins.rc.

Again -init will populate the service with some sample data.

Now you can open your browser, connect to the front-end machine and play with your own implementation.

If you want to use some other configuration file, use the -rc flag. It is supported in all the utilities above.

Again, when you completes this lab, it should be perfectly fine to have multiple front-ends that connects to the set of back-ends. Also both the front-ends and the back-ends should be scalable.

Assumptions

These are some unreal assumptions you can have for Lab2.

Note that some of them won't stay true in Lab3, so try not to rely on the assumptions too much if possible.

Requirements

In addition to the requirements specified by the interfaces, your implementation should also satisfy the following requirements:

Building Hints

While you are free to build the system in your own way, here are some suggested hints:

Possible Mistakes

Here are some possible mistakes that a lazy and quick but incorrect implementation might do:

Turning In

First, make sure that you have committed every piece of your code into the repository triblab. Then just type make turnin under the root of the repository. It will generate a turnin.zip that contains everything in your git repository, and will then copy the zip file to a place where only the lab instructors can read.

Happy Lab2
