CSE141 Tutorial: Generating Memory Module with Altra "MegaWizard"

In lab 4 you will be implementing the back-end of your processor. In order to do so, you will need to generate memory modules for both your data and your instruction memories. In Lab 2 we gave you an instruction memory module that was generated using this same utility. However, you will need to make some modifications to your instruction memory in Lab 4 so you will be generating the instruction memory module. The following steps will give you a shiny new memory module. Note that the tutorial is based on generating a data memory module. Only small changes will be needed to generate the instruction memory module.

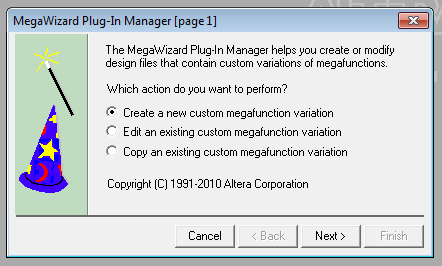

  1. Launch the "MegaWizard" Plug-In. You can find it at Quartus II/Tools/MegaWizard Plug-In Manager. Create a new custom megafunction variation

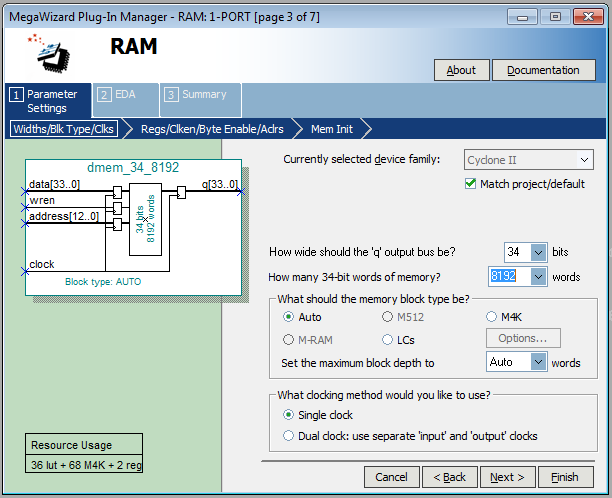

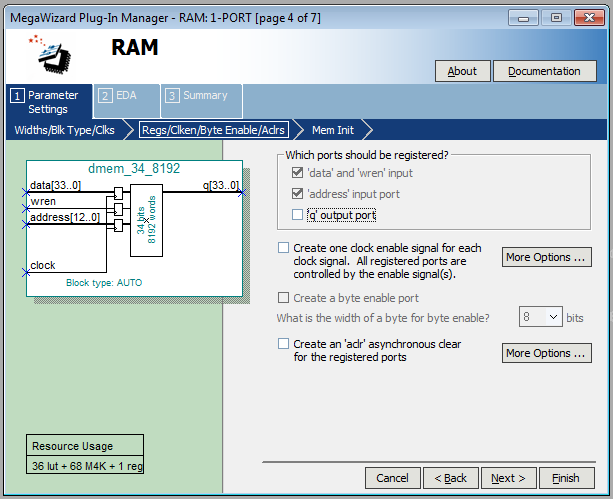

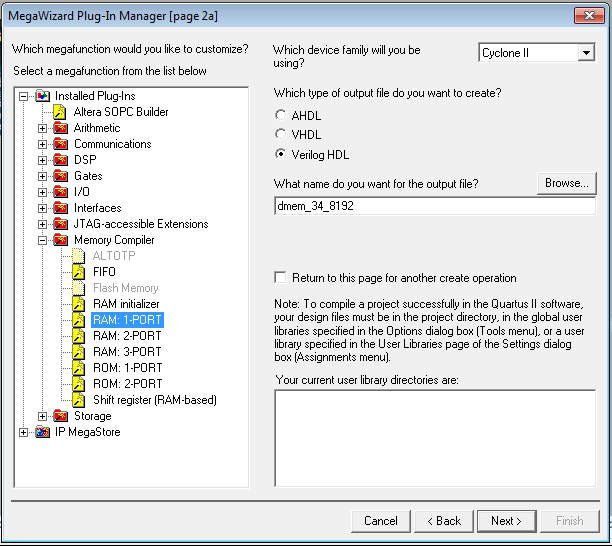

  2. Follow the settings as it shown on the pictures



  5. From this stage press next till wizard is finished!
