cse141 Project 1: Design Your Own ISA

Changelog

Due Dates: October 14, 21, 28, November 4

Due Time: 11:59 PM

A Letter from Jake

Dear Cob,

Our revenues are getting hit by the knock-off clones from our low-cost rival, Boatorola Corp. The business strategist from Underson Consulting says our only hope for survival is to go afer a novel market and patent every aspect of our product. Our sales and market force has forwarded a market survey by Gaurdner group that says that the new SuperGarbage tablet platform is growing exponentially and soon to overtake Android and the Apple iOS. The survey also suggests that users are more inclined to buy processors that consume less energy but give high performance. This is our opportunity!

We need a processor design that is highly unique (and patentable!), but also provides best-of-class performance and energy efficiency on the SuperGarbage virtual machine. Although the design should be general-purpose (and for instance run the SuperGarbage app store's top selling app, Fibonacci), you should explore non-conventional designs so that we give our patent attorneys fodder for patent filings. Then when Boatorola copies us, we litigate for patent infringement!

We are hoping that you can pull together a team that can provide us with a new instruction set architecture that looks novel enough that we will have ample material to patent.

Underson Consulting has determined that from a strategic perspective, an ISA with a data word size of 34, and an instruction word size of either 11-bit or 14-bit will be ideal for our purposes. It is up to you to chose ahead of time which one you will use. Since there are few 11-bit or 14-bit ISAs out there, we will have lots of things to patent.

Your design will be evaluated simultaneously on how fast it is and how energy efficient it is, using a metric called energy-delay product, which is (the amount of energy it takes to execute the program) times (the delay of the program). For the purposes of estimation, the delay will be the number of dynamic instructions executed. We estimate energy to be proportional to the number of dynamic instructions executed times (5+W). Thus, if i equals the number of dynamic instructions executed and W is the instruction width, energy-delay product will be estimated as i * i * (5+W), lower values are better. (Thus the smaller instruction set has to result in less than a ~15 percent increase in dynamic instruction count in order to pay off.)

Our products still need to be competitive, so the ISA should be general purpose and reasonably efficient. Also, since the fuse is relatively short on this, you will need to keep it simple. Your compensation will be based on the correctness, novelty and efficiency of the end product.

Thanks in advance,

Jake

Overview

As you read in Jake's letter, you should save your company by designing a novel processor in less than one month. You will first focus on the design of your own ISA. You may work in groups of up to two people. Your ISA should be general enough to run all the provided benchmark programs, while being simple enough to allow you to implement a reasonably fast and energy efficient processor in the allotted time frame. Then, you will implement two essential components for architectural validation and verification -- assembler and simulator. An assembler translates your program written in your assembly language into binary code; a simulator performs a simulation upon a provided binary code. Collectively, they form essential infrastructure for your processor design. For the implementation of the assembler and the simulator, we strongly recommend that you use the framework provided, as it is likely to save you huge amounts of time.

Requirements

• You must design an ISA that fulfills the following requirements.
  • Instruction width: 11 or 14 bit (Fixed Width. For example, if you choose 11 bits, all your instructions must be 11 bits wide.)
  • Data and address widths (word size): 34 bit
    • Note: you should be able to jump anywhere in the 34 bit address space by using la and jr, but it's ok if your branches are limited to a smaller range relative to the branch instruction.
  • General purpose enough to be able to run provided benchmarks and more general programs
    • Your instruction set architecture must allow access to the full 34-bit address space.
    • The code and data may be dynamically loaded to some addresses. You cannot make any assumption on where the code and data sections will be in memory.
      (i.e. The address of a label may be any 34-bit address.)
  • Include the following four instructions
  • in [dest] [channel[3:0]] : read a 34-bit data from the specified channel and save at [dest]
  • out [src] [channel[3:0]] : write a 34-bit data from [src] to the specified channel
  • halt : stop execution and return control to the simulator's command prompt.
  • la [reg] [label] : load the address of label into reg; this is actually a pseudo instruction. One way to implement it is to expand it out to a series of sloi (shift left and or immediate) instructions that take a value in a register, shift it left by the width of your immediate and then or the immediate. Doing this repeatedly allows you to construct a 34 bit value fairly quickly. No matter how you implement la, make sure you can handle a label that has a 34 bit address.
  • You must leave opcode space for expansion in case you leave out an instruction you need!
• You must develop an assembler to generate machine code from assembly code.
• You must also develop a simulator to validate the correctness of your ISA.

ISA

• Design Guideline

  Ultimately your ISA and resulting implementation will be evaluated according to the following criteria:

  • Energy-delay Product

  What are the energy-delay products if we run the SuperGarbage and Fibonacci benchmark programs on your processor?

  • General purpose

  Is it able to execute the provided benchmark programs, and other general purpose programs? If we change the benchmarks slightly, will your design still provide good performance without hw modifications?

  • Novelty

  How much is it different from existing ISAs such as MIPS or SPARC? Creativity is expected and will be rewarded.

• I/O (Input/Output) Instructions

  Your ISA should support two I/O instructions - in and out. These instructions allow a processor to communicate with the external world via 16 channels. The width of a channel is 34-bit. The in instruction reads a 34-bit data from a specified channel while the out instruction writes a 34-bit data to a specified channel.

  I/O instructions have blocking semantics. If there is no data available to read by the in instruction, the processor simply waits until there is available data. Similarly, upon an out instruction, the processor must wait until the write operation completes; it might need to wait for available buffer space. You can freely use channels for various purposes such as debugging and multicore interface.

Assembler

• Assembler framework

  In order to save your time in developing a new assembler, you can extend the java-based assembler framework to generate the executable machine code. The core of our assembler framework is an abstract class "Assembler". To complete your assembler, you may create a new class that inherits the Assembler class and realize the abstract methods in the Assembler class. The detailed description of our assembler framework is located here.

  (New for 2012) The Assembler class should be checked out via:
  svn checkout http://parallel.ucsd.edu/asm-sim-framework/trunk

• Input and Output Requirements

  • Your assembler should accept following command line input:
  • [$name].s : a single .s (assembly test bench) file
  • [$prefix] : the prefix of your assembler output.
  • Your assembler have two outputs - $prefix_i.coe and $prefix_d.coe. $prefix_i.coe corresponds to a 17-bit instruction memory while $prefix_d.coe corresponds to a 34-bit data memory. They must have the following forms:

  • $prefix_i.coe - 17 bit word size

    MEMORY_INITIALIZATION_RADIX=16;
    MEMORY_INITIALIZATION_VECTOR=
    00000,
    00001,
    00002,
    00003,
    00004,
    00005,
    .....,
    1DEAD
    EOF


  • $prefix_d.coe - 34 bit word size

    MEMORY_INITIALIZATION_RADIX=16;
    MEMORY_INITIALIZATION_VECTOR=
    000000000,
    000000001,
    000000002,
    000000003,
    000000004,
    000000005,
    .........,
    3DEADBEEF
    EOF


  The first line in each output file specifies the numerical format used in the file. We use hexadecimal notation. Note that each entry of the 'MEMORY_INITIALIZATION_VECTOR' is data for each word, starting from address 0x0. Thus an entry of the instruction memory is 17-bit, while that of the data memory is 34-bit. (For historical reasons, the framework supports 17 bits instruction width. You are expected to work within the instruction width provided by the framework by padding zeros to the high order bits of your instructions to make it 17 bits. For example, if you choose a 14-bit ISA, you should pad 3 zeroes to the left of each instruction while implementing the assembler. That is, an instruction 0x3BAD becomes 0x03BAD. This does not change the fact that your ISA has 14 bit wide instructions.) These output files will be used as inputs to your simulator.

  Aside:This is also the file format that Xilinx design tools used to initialize memory ROM and RAM modules. If you were using Xilinx design tools to implement a processor that adheres to your ISA, you would use these .coe files directly. Since the lab class (141L) now uses Altera tools to realize processor design, you will not be able to use .coe files directly--Altera tools use files in Intel Hex format to initialize ROMs and RAMs. In order to use the .coe files you'll be generating in this class to initialize ROMs and RAMs in the lab class, you can use this script to convert .coe files to .hex files. Run the script with the -h option to see how to use it.

  Since a *.coe file always starts out at 0x0, you must fill out unused memory area from 0x0 to -text_addr or -data_addr with arbitrary values (typically 0x0). However, for other unused memory locations, you do not need to specify values; unspecified memory locations will have arbitrary values.

  • Assembler example usages:

  • prompt> java asm garbage.s garbage

  The assembler will generate two files - garbage_i.coe and garbage_d.coe which contain the translated .text and .data components of garbage.s and will be loaded by the simulator at addresses 0x0 of the instruction memory and 0x0 of the data memory, respectively.

Simulator

Now that you have an easy way to generate machine code, it is time to implement a simulator. With a simulator, you can 1) easily verify your ISA without actually implementing hardware, 2) debug your application without having actual hardware, and 3) improve your ISA by spotting performance bottlenecks in benchmark programs. Your simulator operates instruction by instruction; you must be able to execute instructions one by one and watch all the programmer visible states (eg. register, memory, ...) at a certain time when the execution of an instruction is completed.

In this project, we also provide you a simple simulator framework to save your time in developing the simulator running your new ISA. You may find the detailed description about the simulator here.

(New for 2012) Check out the simulator via:

svn checkout http://parallel.ucsd.edu/asm-sim-framework/trunk

Benchmarks

Two benchmarks are provided to help guide your ISA development. You need to write assembly programs based on your ISA for all the benchmarks. Assume that all the addresses (pointers) and data in the benchmark programs are 34 bits.

• Fibonacci Number

  // Recursive Fibonacci
  //  get 'n'th fibonacci number .. sort of!
  // You should not alter the algorithm

  int fib(int n)
  {
    if (n < 0)
      return 0x3DEADBEEF;
    else if (n <= 2)
      return 1;
    else if (n == 29)
      return 514229;
    else if (n == 30)
      return 832030;  // note: this "bug" is intention and matches with SG fib
    else if (n == 48)
      return 4807526976;
    else if (n == 49)
      return 7778742049;
    else return fib(n-1) + fib(n-2);
  }


• SuperGarbage (SG)

  // function supergarbage:
  //    perform various operations
  //
  // opcodes
  // 0: subtract
  // 1: right shift
  // 2: nor
  // 3: swap
  // 4: in
  // 5: out
  // 6: conditional jump with link
  // 7: halt
  //
  // note: int is 34 bits

  struct inst {
    int op;
    int srcA;
    int srcB;
    int dest;
  };

  int SuperGarbage(int pc, int *mem)
  {
   while(1)
   {
    struct inst *instruction = &(mem[pc]);
    int op = instruction->op;
    int srcA = instruction->srcA;
    int srcB = instruction->srcB;
    int dest = instruction->dest;
    pc = pc + 4;

    switch(op) {
     case 0: mem[dest] = mem[srcA] - mem[srcB]; break;
     case 1: mem[dest] = mem[srcA] >> 1; break;
     case 2: mem[dest] = ~(mem[srcA] | mem[srcB]); break;
     case 3: temp = mem[srcB]; mem[dest] = mem[mem[srcA]]; mem[mem[srcA]] = temp; break;
     case 4: in  mem[dest], mem[srcA]; break; // in  mem, channel #
     case 5: out mem[srcA], mem[srcB]; break; // out data, channel#
     case 6:
       mem[dest] = pc;
       if (mem[srcA] < 0)
       {
        pc = mem[srcB];
       }
       break;
     case 7: return pc;
    }
   }
  }


  SuperGarbage Applications

  The SuperGarbage benchmark is a virtual machine that can execute SuperGarbage applications. The following table provides some SuperGarbage applications that helps to validate your implementation. Each SuperGarbage applications may get inputs from input channel #2 and #3. You may test your SuperGarbage VM implementation with the following steps:

  1. Load your SuperGarbage VM into the instruction memory of the simulator.
  2. Load your SuperGarbage application(*_d.coe files) into the data memory of the simulator. The *.s files are only for your reference to understand what operations the coe files perform.
  3. Specify the input values and put them into input channel #2 and channel #3 of the simulator. The sample input values can be found in the table below.
  4. Then, set the input pc of SuperGarbage() with the PC specified in the table and the *mem as the data address you load the application to be tested.
  5. Start running it and debug!

  Benchmark	Assembly File	Coe File (load it as data)	Input		PC	Reference Output
  			Channel #2	Channel #3
  Compare	app0.s	app0_d.coe	10, 40	0x6, 0x4, 0xb, 0x1	32	0x5, 0x1e
  Fibonacci	app1.s	app1_d.coe	10, 40	0x1f	256	0x1f, 0x1e, 0x1e,0xcb21e,0x1d,0x1d, 0x7d8b5,0x1f,0x148ad3,0x148ad3,0x1e
  Bubble Sort	app2.s	app2_d.coe	10, 40	0xfa1, 0x5, 0x4, 0x2, 0x3, 0x5, 0x1	512	0x1,0x2,0x3,0x4,0x5,0x1e

Deliverables

If you cannot complete you lab on time, you can turn it in late, but your grade will be penalized. The penalty is set after the due date, and typically runs as high as 10% per 24 hours.

Note that the entire package is due November 4. The milestone dates indicate the latest date at which you can submit this release without a late penalty. You should continue on to the next portion of the project even if you have completed a milestone early; we do not guarantee that these are spaced proportionally to the amount of work involved.

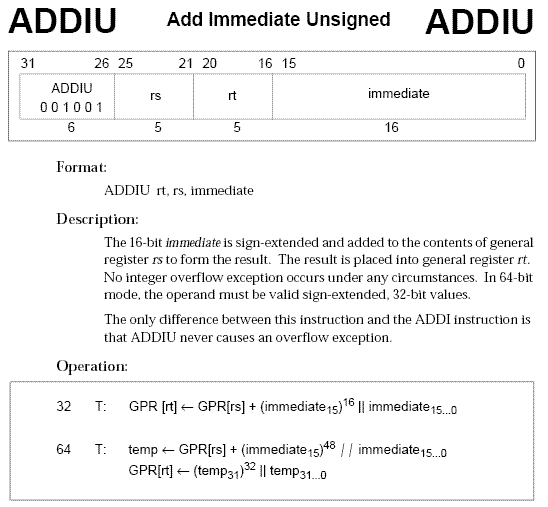

svn co http://parallel.ucsd.edu/isa-manual-template
