Welcome to Lab 2. The goal of this lab is to use the RPC service we built in Lab 1 as the basis to impelement a scalable Tribbler infrastructure, split into separate front-ends and back-ends.

In particular, you will do this by first wrapping the key-value server into a distributed key-value service called bin storage. Your implementation should fit the trib.BinStorage interface. Then, on top of this storage layer, you will implement a stateless Tribbler front-end that fits the trib.Server interface.

Get Your Repo Up-to-date

First we need to update the trib repo to pull down any recent changes that we (the instructors) may have made:

$ cd ~/gopath/src/trib
$ git pull origin master

This should be painless, but if you changed anything in the trib repo, you'll need to merge the changes by hand. As a reminder, changes to the trib repo aren't necessary, and you shouldn't be doing them.

You'll also want to merge in any changes from the triblab repo. Hopefully, this will also be painless, as we don't (as of this writing) expect any changes.

$ cd ~/gopath/src/triblab
$ git pull origin master

If you have trouble on merging the changes (on any of the repos), and don't know how to solve the conflicts, please ask the TA for help.

System Architecture

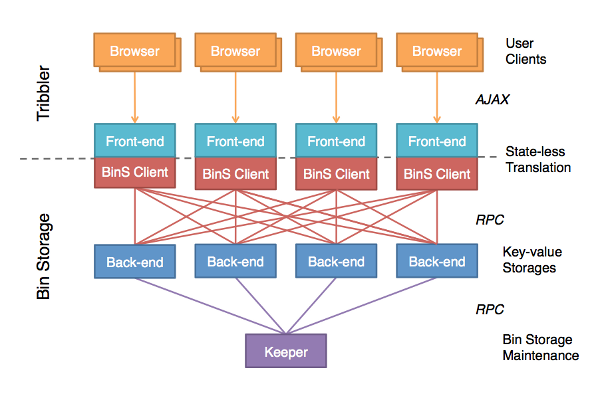

The overall system architecture looks like this:

System Arch

Our system is split into two parts. The upper part is the Tribbler service. The lower part is a general purpose distributed key-value store called "Bin Storage". Users' web browsers make AJAX calls to the Tribbler front-ends. These front-end servers then convert those requests into one or more calls to the bin storage client interface. This interface then uses RPC to talk to one or more of the simple key-value stores that we built in Lab 1.

Separately, there is also a keeper running in the background that maintains the bin storage in a coherent state. Both the bin storage clients and the keeper use the same RPC interface (the one developed in Lab 1) to communicate with the back-ends. The interface semantics defined in trib.Storage should be sufficient to perform all the bin storage tasks without any changes.

Bin Storage

Bin Storage is a distributed key-value system that combines a bunch of trib.Storage back-ends and presents itself as a unified and scalable storage service over the network. Bin storage service is provided via the trib.BinStorage interface.

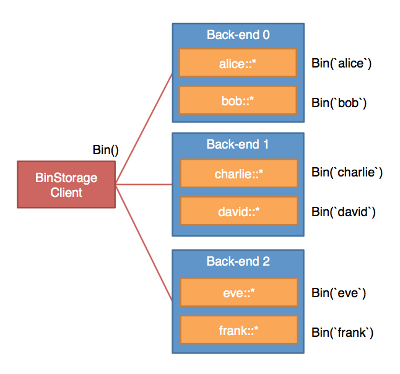

Conceptually, bin storage provides an infinite set of separate trib.Storage instances called bins. Each bin has a different name, and a caller can fetch a bin via the BinStorage.Bin() function. This is the only function in the trib.BinStorage interface. Initially, all bins are empty.

The bin storage service provides this service on top of a finite set of back-end key-value stores (Lab 1). Each bin (a virtual KV store) will be mapped to one of the key-value back-ends. Thus, this is a many-to-one mapping, with multiple bins potentially sharing a single back-end. You will do this by splitting the key space with prefixes (or suffixes) that encode the bin names. As an example, the figure below shows a bin storage hashing 6 bins into 3 back-ends, where each bin is indicated with a different prefix. When a caller calls Get("some-key") on the bin "alice", for example, the bin storage client translates this into a Get("alice::some-key") RPC call on back-end 0.

Bin Storage

In addition to key-value stores in bins, the bin storage also maintains a coarsely synchronized logical clock across all the bins, so items in different bins can be reasonably ordered relative to each other. Since the back-ends are "dumb", and do not talk to each other, this clock synchronization is a job for the background keeper process. Note that the clocks are NOT real-time synchronized (which would be too expensive for a distributed system), but only coarsely synchronized. In particular, if a Clock() call is issued at least 3 seconds after another Clock() call, no matter which bins they are issued in, bin storage always guarantees that the later call always returns a clock value no smaller than the earlier one's. Note that a bin storage with one single back-end will trivially satisfy this requirement. The keeper's job comes in when there are multiple back-ends to keep in sync.

As mentioned, we already implemented the back-end for Lab 1, and the key-value store API will not change. Both the bin storage client and the keeper will communicate with the "dumb" back-ends via the RPC calls we implemented, and cooperatively they will present a coherent bin storage interface to upper layer applications. Since we'll be reusing the work from Lab 1, make sure you've implemented the back-end correctly!

Tribbler

Before we look into how the Tribbler service works, let's first define what a tribble is.

A Tribble is a Go structure that has 4 fields:

type Trib struct {
    User    string    // who posted this trib
    Message string    // the content of the trib
    Time    time.Time // the physical timestamp
    Clock   uint64    // the logical clock
}

Time is a real-world timestamp, read from the machine's time on the front-end immediately after Post() is called on a trib.Server. In order to sort tribbles in a globally consistent and reasonable order, however, we cannot sort the tribbles only by this timestamp, as different front-ends may have different clocks. For sorting, the Tribbler service uses a distributed logical Clock in uint64.

When sorting many tribbles into a single timeline, you should sort by the fields following this priority:

  1. Clock The logical timestamp.
  2. Time The physical timestamp.
  3. User The user id.
  4. Message The message content.

We call this the Tribble Order.

Tribbler Service Interface

The Tribbler service logic is defined by the trib.Server interface (in trib/trib.go). This is how the web user interface interacts with a Tribbler server.


SignUp(user string) error

Creates a new user. After a user is created, it will never disappear in the system.

Returns error when the username is invalid or the user already exists. If there are concurrent sign-ups, both sign-ups may succeed.

Valid usernames must be no longer than trib.MaxUsernameLen=15 characters but not empty, must start with a lower-case letter, and can only contain lower-case letters or numbers. There is a helper function called trib.IsValidUsername(string) which you can use to check if a username is valid.


ListUsers() ([]string, error)

Lists at least trib.MinListUser=20 different registered users. When there are less than 20 users that have ever signed up, list all of them. The returned usernames should be sorted in alphabetical order.

This is just for showing some users on the front page; this is not for listing all the users that have ever signed up, as that would be too expensive in a large system.


Post(who, post string, clock uint64) error

Posts a tribble. clock is the maximum clock value this user client has ever seen (from reading tribbles via Home() or Tribs()). It returns error when the user does not exist or the post is too long (longer than trib.MaxTribLen=140).


Tribs(user string) ([]*Trib, error)

Lists the recent trib.MaxTribFetch=100 tribbles that a user posted. Tribbles needs to be sorted in the Tribble Order, and also in the same order that the user posted the tribbles.


Follow(who, whom string) error
Unfollow(who, whom string) error
IsFollowing(who, whom string) (bool, error)
Following(who string) ([]string, error)

These are functions to follow/unfollow, check following and listing all following users of a user. Users can never follow/unfollow themselves. When calling with who equal to whom, the functions must return an error. When the user does not exist, the functions return an error. If a user performs a Follow() on another user over multiple clients concurrently, only one Follow() should succeed with no errors.

A user can follow at most trib.MaxFollowing=2000 users. When a user tries to follow more than trib.MaxFollowing=2000 users, Follow() should return an error.


Home(user string) ([]*Trib, error)

List the recent trib.MaxTribFetch=100 tribbles that are posted on the user's timeline in Tribble Order. In addition, the ordering should always satisfy the following conditions:

  1. If tribble A is posted after tribble B, and they are both posted by the same user, A always shows after B.
  2. If tribble A is posted at least 10 seconds after tribble B, even if they are posted by different users, A always shows after B.
  3. If tribble A is posted after a user client sees tribble B, A always shows after B.

A is posted after B means B calls Post() after A's Post() has returned.

The function returns error when the user does not exist.


In addition to normal errors, these calls might also return IO errors if the implementation is unable to communicate with a remote service. Returning a nil error means that the call is successfully executed; returning a non-nil error means that the call may or may not have successfully executed (depending on when/where the error occurred).

Note that the trib/ref package contains a reference implementation for trib.Server (which you played with briefly in the lab setup).

Entry Functions

Your job for Lab 2 is two-fold.

  1. Implement the bin storage service by implementing the bin storage client logic (the NewBinClient() function) and the keeper (the ServeKeeper() function).
  2. Reimplement the Tribbler service by translating all the Tribbler service calls into bin storage service calls (the NewFront() function).

You can find these entry functions in lab2.go file under triblab repo:

func NewBinClient(backs []string) trib.BinStorage

This function is similar to NewClient() in lab1.go but instead returns a trib.BinStorage interface. trib.BinStorage has only one function called Bin(), which takes a bin name and returns a trib.Storage. A bin storage provides another layer of mapping, where the caller will first gets a key-value store (the bin) with a name and then performs calls on the returned store. Different bin names should logically return completely separate key-value storage spaces, even though multiple bins might share a single physical back-end store.

For your convenience, we have provided a small package called trib/colon which you can use for escaping all the colons in a string. The escaping rule is simple, all '|' characters are escaped into "||", and all ':' characters are escaped into "|:". Please use this package wisely.


func ServeKeeper(b *trib.KeeperConfig) error

This function is a blocking function, similar to ServeBack(). It will spawn a keeper instance that maintains the back-ends in a bin store in consistent state. For Lab 2, there will be only one keeper and the keeper won't have a lot to do. In Lab 3 we'll be adding fault tolerance. Then, there will be multiple keepers, and they will handle maintaining consistency as back-ends die and rejoin.

(Note: A blocking function in this context means that it will never return under normal operation. If it does return, it will be because it experienced an error. If you implemented ServeBack() in Lab 1 with something like go http.Serve(...), you should go back and fix it before continuing.

The trib.KeeperConfig structure contains all the information needed on back-ends, and also some additional information about other keepers which you can ignore until Lab 3:

You can add whatever functionality you want to the keeper, so long as it is limited to maintaining the integrity and consistency of the bin storage, and the setup is limited to the three NewBinClient(), ServeBack() and ServeKeeper() calls. In particular, since the keeper is logically part of the bin storage service, it may understand how a bin storage client translates keys. It should NOT rely on anything specific to Tribbler.

Although an address for each keeper is given in the Keepers field, your keeper does not necessarily need to listen on the address given. The keeper address serves more like a unique keeper identifier, and identifies that a keeper should be running on a given machine.


func NewFront(s trib.BinStorage) trib.Server

This function takes a bin storage structure, and returns an implementation of trib.Server. The returned instance then will serve as a service front-end that takes Tribbler service requests, and translates them into one or more calls to the back-end key-value bin storage. This front-end should be stateless, concurrency safe, and ready to be killed at any time. This means that at any time during its execution on any call, the back-end key-value store always needs to stay in a consistent state. Also, note that one front-end might be taking multiple concurrent requests from the Web, and there might be multiple front-ends talking to the same back-end, so make sure your system handles all the concurrency issues correctly.

Note that your tribbler service should not rely on any special features that you added to your bin storage client. In particular, we should be able to swap out your trib.BinStorage for our own, and your Tribbler front-end should be perfectly happy (and none the wiser). In particular, this means that you cannot rely on the bin storage keeper to perform Tribbler related tasks. A front-ends may spawn additional background go routines if additional work is required by your implementation.

Putting the pieces together

Your first step should be to write the bin storage service. Since we might have multiple parts running at the same time, potentially on different machines, we need a configuration file that specifies the serving addresses of the back-ends and the keeper for the distributed bin storage. By default, the system expects a file named bins.rc.

bins.rc is saved in JSON format, marshalling a RC structure type (defined in trib/rc.go file). We have a utility program called bins-mkrc that can generate a bins.rc file automatically.

Find a directory to use as your working directory (like triblab), then run:

$ bins-mkrc -local -nback=3

This will generate a file called bins.rc under the current directory, and also print the file content to stdout. -local means that all addresses will be on localhost. -nback=3 means there will be in total three back-end servers. If you remove -local, then it will generate back-end servers starting from 169.228.66.143 and going up to 169.228.66.152, which are the IP address of our test machines. For bins-mkrc, there can be at most 10 back-ends and 10 keepers (since we only have 10 lab machines). However, you are free to create your own bins.rc file that has more back-ends and keepers. For now, we'll use 3 back-ends and 1 keeper (the default value for -nkeep).

With this configuration file generated, we can now launch the back-ends:

$ bins-back

This will read and parse the bins.rc file, and spawn all the back-ends that have serving address on this host. Since all the back-ends we generate here are on localhost, all three will be spawned with this command, each in its own goroutine. You should see three log lines showing that three back-ends started, but listening on different ports. Aside from reading its task from the configuration file, bins-back isn't much different from the kv-serve program. You can also specify the back-ends you'd like to start directly by providing command-line flags. For example, you can run the following to start only the first two back-ends:

$ bins-back 0 1

By the way, by spawning multiple servers in a single process, this program does a good job of demonstrating why we didn't want to use rpc.DefaultServer in Lab 1.

After the back-ends are ready, we can now start the keeper.

$ bins-keeper

This process should print a message that shows that the bin storage is ready to serve.

To play with this distributed bin storage, we can use bins-client:

$ bins-client
(working on bin "")
> bin a
(working on bin "a")
> get a

> set a b
true
> get a
b
> bin t
(working on bin "t")
> get a b

> bin a
(working on bin "a")
> get a b
b
...

This program reads the back-end addresses from bins.rc and can switch between different bins with the bin command. Otherwise, it operates similarly to kv-client from the previous lab. The default bin is the bin named "".

Once our bin storage is up and running, we can launch our Tribbler front-end:

$ trib-front -init -addr=:rand -lab

You have used this utility before. The only new thing here is the -lab flag, which tells it to read the bins.rc file and use our lab implementation. This will start a stateless front-end (which you implemented in this lab) that connects to the back-ends specified in bins.rc.

Again -init will populate the service with some sample data.

Now you can open your browser, connect to the front-end machine and play with your own implementation.

If you want to use some other configuration file, use the -rc flag. It is supported in all the utilities above.

Again, once you've completed this lab, your Tribbler implementation should be able to support multiple front-ends and multiple back-ends in a nice, scalable (but not fault-tolerant) way.

Assumptions

For this lab, there are a number of simplifying assumptions we'll be making. Some of these assumptions are reasonable. Many of the rest we'll remove in Lab 3:

Again, some of these assumptions won't stay true for Lab 3, so try to avoid relying on these assumptions if possible.

Requirements

In addition to the requirements specified by the interfaces, your implementation should also satisfy the following requirements:

As a result, all test cases that pass for Lab 1's storage implementation should also pass on your bin storage implementation for Lab 2.

Building Hints

While you are free to build the system any way that meets the requirements, here are some suggestions:

Possible Mistakes

Here are some possible mistakes that a lazy and quick but incorrect implementation might do:

Readme.md

Please include a Readme.md file. Readme.md should be a text file (ideally in Markdown format) that describes how your system works at a high level. You should be able to describe how your Bin Storage works in a few sentences, and Tribbler in a few more.

The purpose of this document is two-fold:

This Readme will count towards your grade, but will not be a significant number of points overall. It's worth spending some time on, but NOT at the expensive of good, working code. You'll primarily be graded on clarity and coverage of the big ideas of your solutions.

Turning In Your Code

First, make sure that you have committed every piece of your code into the repository triblab. Then just type make turnin-lab2 under the root of the repository. It will generate a turnin.zip file that contains everything in your git repository, and then it will copy that file to a place where only the lab instructors can read it.

Happy Lab 2!
